Gép-Gép kapcsolat


Vezetékmentes kommunikációs megoldások

A következő összeállítás csak azokat az eszközöket tartalmazza, melyek paraméterei megfelelnek az EU-ban szabványosított értékeknek (frekvencia, sávszélesség, sugárzás stb)
2G/3G/4G Wireless Solutions
Oringnet 4G Router
Industrial IEEE 802.11 a/b/g/n 4G LTE Cellular Router with 2x10/100/1000Base-T(X)
Oringnet gateway
Industrial IEEE 802.11 b/g/n 4G LTE Cellular Router with 2x10/100Base-T(X), 1-Port PoE P.D., 1x RS-232/422/485 Gateway
ICP DAS 2G/3G/4G wireless solutions are uniquely designed to meet the challenges of implementing and managing a small, medium and large number of unmanned remote devices as well as mobile terminals using the 2G/3G network.

2G/3G/4G modems
Industrial Quad-band 3G WCDMA modem with RS-232 and USB interface

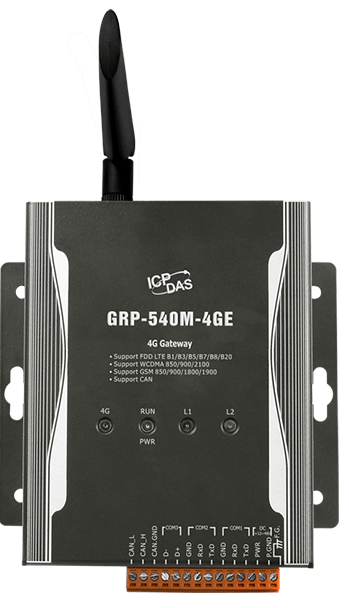

2G/3G/4G Gateway
3G gateway: 850/ 900/ 1900/ 2100MHz
4G gateway: B1/ B3/ B5/ B7/ B8/ B20
2G/3G/4G Multi Function Controller
Intelligent 2G/3G Multi Function Controller with GPS
Mini-PAC with 2G/3G/4G and Multi I/O
3G WCDMA Power Saving PAC with Solar charger (RoHS)
Power Saving PAC with Solar charger and optional communication module (RoHS)
back
Remote Maintenance Solutions
Távoli karbantartás (RM), hang alapú kapcsolat. ICP DAS is designed for Remote maintenance M-4132 module is specially designed for the remote maintenance solution with voice streaming. This module provides 2 major technologies on networking: Voice streaming and Pair connection.
RM Device server
M-4132 (M2M-420-A)
Remote Maintenance Device server with audio communication
Intelligent Remote Maintenance Device Server
RM Device Terminal Unit
Remote maintenance Ethernet Device Terminal Unit
Remote maintenance Wi-Fi Device Terminal Unit
back

A Zigbee egy vezeték nélküli technológia, melyet az alacsony költségű kis teljesítményű IoT hálózati igények hoztak létre. A Zigbee szabvány az IEEE 802.15.4 fizikai radio-kommunikáció szabványra épül és a hagyományos "szabad" rádiófrekvenciákat használja: 900Mhz, 2,4Ghz, 868 Mhz. ZigBee is a specification based on the IEEE 802.15.4 standard for wireless personal area networks (WPANs). ZigBee operates in the ISM radio bands and its focus is to define a general-purpose, inexpensive, self-organizing, mesh network that can be used for industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation, home automation, and domotics, etc.

A ZigBee a master-slave kommunikációs technikát használja, kis méretü adat-csomagokkal. Egyetlen passzív csillag-topológiájú hálózatban 254 eszköz lehet. ZigBee uses a basic master-slave configuration that is suited to the static star networks of many infrequently used devices that talk via small data packets. Up to 254 nodes are allowed.

ICP DAS provides many ZigBee solutions such as Ethernet/RS-232/485 to ZigBee Converters, ZigBee Repeater and ZigBee Wireless I/O modules.

ZigBee  Repeater/Bridge
ZigBee Bridge Module (ZigBee Coordinator and ZigBee Router)
ZigBee Converter
RS-485/RS-232 to ZigBee Converter (Host)
RS-485/RS-232 to ZigBee Converter (Slave)
back
WLAN Wireless Solutions
WLAN (Wireless Local Area Network) links devices using wireless distribution method (spread-spctrum or OFDM radio), and generally providing a connection through an access point to the internet. WLAN gives users the mobility to move device around within a local coverage area and still be connected to the network. High-bandwidth allocation for wireless will make possible a relatively low-cost wiring.
Wi-Fi Converter
Ethernet/UART to Wi-Fi Converter
Ethernet/UART to Wi-Fi Converter
Wi-Fi AP
Wi-Fi Access Point
back

GPS Solutions
The Global Positioning System (GPS) is a space-based global navigation satellite system (GNSS) that provides reliable location and time information in all times and anywhere on the Earth when and where there is an unobstructed line of sight to four or more GPS satellites. ICP DAS provides various GPS products which are designed for rapid startup time and high performance in foliage and urban canyon environment.
GPS Modem & Receiver
GPS Receiver
GPS Receiver
GPS Receiver Module with 2 DO and 1 PPS output
GPS Receiver and 1 DO, 1 PPS Output Module (RoHS)
GPS Receiver With Modbus/DCON Protocol
back
A wireless modem is a type of radio converter that is able to convert information that exists on a wired network, such as one connected using an RS-232 or RS-485 interface, etc., to a wireless network. The wireless modem is designed for data acquisition and control applications between a host and any remote sensors that are connected to the network. It is also useful for those applications where it is inconvenient or impractical to install physical cable wire. Not only can a wireless modem be used in peer-to-peer mode, it can also be used in a multi-point structure.
Wireless Modem
433 MHz RS-232/RS-485 Wireless Modem
2.4 GHz RS-232/RS-485 Wireless Modem


In response to the Internet of Things, big data analysis, industry 4.0, energy-saving and carbon-reduction requirements, ICPDAS has developed the "Industrial Wireless Sensor Network" solution. In addition to integrating current, temperature measurement and wireless transmission functions into one module, the ultra-low power consumption can be matched with a current comparator (hereinafter refer to CT) for inductive charging, it can meet the supply and demand balance of working power and achieve continuous uninterrupted measurement equipment parameters with sufficient power. The setting can be completed by dip switch, which not only doesn't affect the production process, but also greatly saves system construction time and reduces maintenance costs. To meet the needs of monitoring equipment power consumption, predictive maintenance and power panel temperature monitoring, it's helpful to maintain the production line equipment and avoid accidents caused by aging of power panel equipment and cables. (more...)

iWSN wireless data concentrator
iWSN data concentrator with RS-232/RS-485 serial port (RoHS)
iWSN data concentrator with Ethernet port (RoHS)
iWSN wireless signal sensing module
iWSN wireless 1 CT channel and 1 expansion interface sensing module(RoHS)
iWSN wireless 2 CT channels and 1 expansion interface sensing module(RoHS)
iWSN wireless 2 CT, 1 thermistor and 1 digital input channels sensing module(RoHS)
iWSN wireless 3 CT and 1 thermistor channels sensing module(RoHS)
iWSN expansion sensing module
iWSN expandable 5 CT channels sensing module(RoHS)
iWSN expandable 5 CT and 7 thermistor channels sensing module(RoHS)
back
